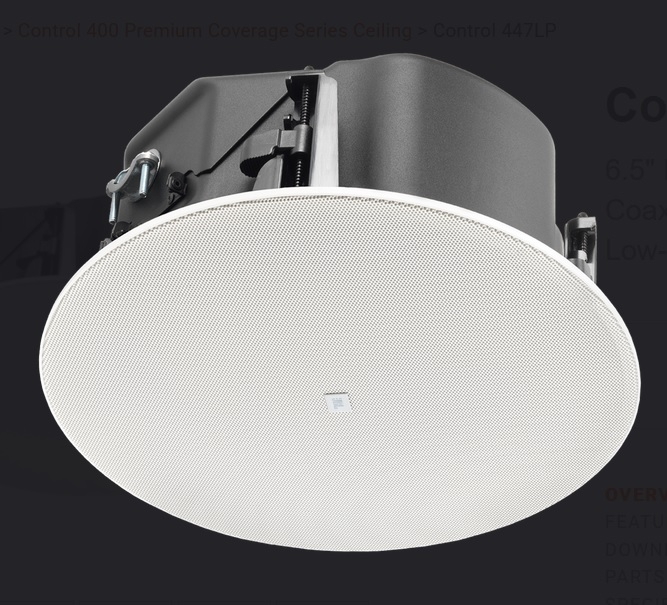

JBL C447LP
Two-Way Coaxial Ceiling Loudspeaker with Low-Profile Enclosure
НЯМА НАЛИЧНОСТ
The JBL Control 447LP, part of the flagship Control 400 Premium Coverage Series, is a two-way coaxial ceiling loudspeaker featuring a 6.5” woofer, conical RBI™, and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.
Featuring JBL’s proprietary conical Radiation Boundary Integrator® (RBI™) technology, the Control 447LP achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.
Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 447LP supports both 70V/100V and low impedance applications.
Specifications
| Frequency Range (-10 dB) | 65Hz - 20kHz |
| Power Capacity | 112 W (448 W Peak), Cont. Pink Noise (2 hrs.) 75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.) |
| Sensitivity (1m/1W) | 91dB |
| Coverage Angle | 120° conical |
| Maximum SPL (1m) | 111.5 dB continuous pink noise (117.5 dB peak) |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W" |
| Drivers | LF: 165mm (6.5 in) with treated paper cone and high-performance magnet HF: 25 mm (1 in) soft-dome with Neodymium magnet |
| Ceiling Cutout Size | 282 mm (11.1 in) |
| Dimensions | 154 mm (6.1 in) H x 316 mm (12.4 in) dia. 142 mm (5.6 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
| Environmental | IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
| Optional Accessories | BL-MTC-447BG black (RAL9004) round grille JBL-MTC-447SG white (RAL9003) square grille JBL-MTC-447WG weather grille JBL-MTC-447NC new construction bracket JBL-MTC-447MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 5.1 kg (11.24 lbs) |
| Shipping Weight (pair) | 15.82 kg (34.88 lbs) |
| SKU Numbers | JBL-C447LP |
-
